Sparse Attention in Transformers: Scaling Sequence Modeling Beyond Brute Force

1. Introduction

Transformers have meaningfully changed the game in NLP, vision, and countless other corners of AI. They’ve fundamentally rewired how we think about sequence modeling. Yet, lurking within this powerhouse architecture lies an Achilles’ heel: the self-attention mechanism. Its computational cost scales quadratically with the length of the input sequence. This notorious O(n²) complexity is a hard wall, a brute computational reality that slams the brakes on processing truly long sequences – think entire novels, high-res medical scans, sprawling protein chains, or lengthy audio streams.

Enter sparse attention. It’s not a single magic bullet, but rather a collection of strategies, born of necessity, to circumvent this quadratic bottleneck. The core idea? Instead of every token wastefully attending to every other token, allow each one to focus its computational budget on a strategically chosen subset. By enforcing this sparsity, these methods wrestle down the memory footprint and computational demands, attempting to salvage most of the modeling prowess that made Transformers dominant in the first place.

It’s the necessary escape hatch enabling AI to grapple with the scale of real-world data – documents stretching for thousands of words, biological code millions of units long. Without sparsity, vast domains would remain firmly beyond our computational grasp.

2. The Quadratic Attention Problem

To grasp why sparse attention became non-negotiable, let’s stare unflinchingly at the bottleneck baked into standard Transformer attention:

The Mathematics of the Bottleneck

In a vanilla Transformer, feeding it a sequence of length n with embedding dimension d forces the self-attention mechanism to:

• Compute a dense n × n matrix of attention scores.
• Hold this potentially massive matrix in memory.
• Perform weighted aggregations based on these scores for every single token.

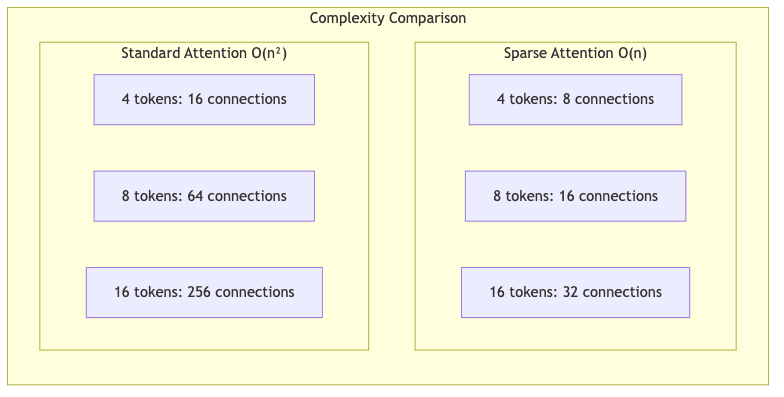

This quadratic curse translates directly into:

• Time complexity: O(n²d)
• Memory complexity: O(n²)

Let that sink in. Processing a sequence of just 10,000 tokens (maybe 30 pages of text) requires computing and storing 100 million attention scores. Per layer. Per attention head. This combinatorial explosion laughs at Moore’s Law for sufficiently large n.

Real-World Impact

This quadratic scaling isn’t just theoretical pain; it manifests as hard limits:

• Memory limitations: Even beefy GPUs with 80GB+ VRAM choke and die when sequences get too long.
• Computational inefficiency: Training times stretch into the absurd, and inference slows to a crawl.
• Limited applications: Entire fields dealing with inherently long sequences (genomics, long-form content analysis, high-resolution vision) are effectively locked out.
• Energy consumption: The computational burden translates directly to staggering power draw and a non-trivial carbon footprint.

3. Types of Sparse Attention Patterns

Sparse attention isn’t one thing; it’s a zoo of strategies for deciding who gets to attend to whom. Each approach barters computational efficiency for potential fidelity, making different assumptions about where the important information lies.

Fixed-Pattern Approaches

These impose a predefined structure on attention, ignoring the content itself. Simple, sometimes effective, often blunt.

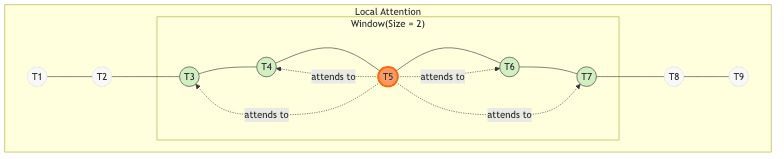

Local Attention

• Mechanism: A myopic focus. Each token only pays attention to its immediate neighbors within a fixed window (w tokens fore and aft).
• Complexity: Slashed to O(n·w), where w is drastically smaller than n – a welcome relief.
• Strengths: Captures local context well; conceptually simple.
• Limitations: Suffers from blindness to distant signals; long-range dependencies are invisible.
• Best for: Tasks where nearby context reigns supreme (much of language modeling, standard image processing).

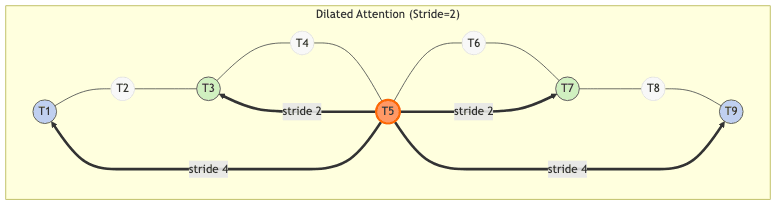

Dilated/Strided Attention

• Mechanism: Like skipping stones across the sequence. Tokens attend to others at fixed intervals (every 2nd, 4th, etc.).
• Advantage: Extends the effective receptive field compared to pure local attention, casting a wider, albeit coarser, net while staying sparse.
• Applications: Useful for hierarchical data or picking up periodic patterns.

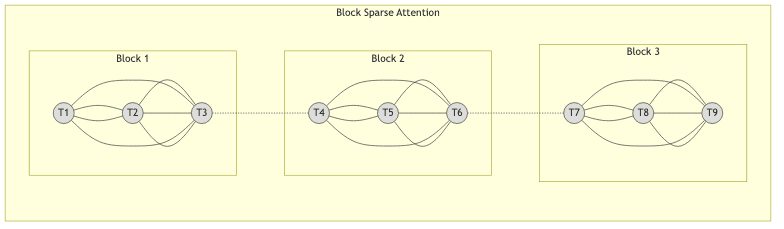

Block Sparse Attention

• Mechanism: Compartmentalizes the problem. Divides sequences into chunks (blocks); attention is dense within blocks but sparse between them.
• Implementation: Can leverage hardware affinity for block-sparse matrix math, making it computationally feasible.
• Balance: Strikes a compromise between the myopia of local attention and the cost of global attention.

Dynamic and Learned Patterns

Fixed patterns are blunt instruments. Can we be smarter, letting the data itself dictate the sparsity?

Content-Based Sparsity

• Mechanism: Attempts to let the data guide the sparsity. Uses token content (embeddings) to decide which connections matter.
• Approach: Often relies on finding approximate nearest neighbors or clustering similar tokens – computationally demanding itself.
• Advantage: Focuses attention budget on potentially more semantically relevant connections, adapting to the input.

Learnable Attention Patterns

• Mechanism: Treats sparsity as another learnable parameter. The model itself learns which connections to keep or prune during training.
• Implementation: Might involve trainable “attention gates” or clever regularization penalties.
• Flexibility: Can, in theory, discover optimal task-specific patterns, but risks overfitting or finding trivial solutions.

4. Prominent Transformer Architectures Using Sparse Attention

Several architectures incorporating these ideas have gained traction, demonstrating the viability of sparse attention in practice:

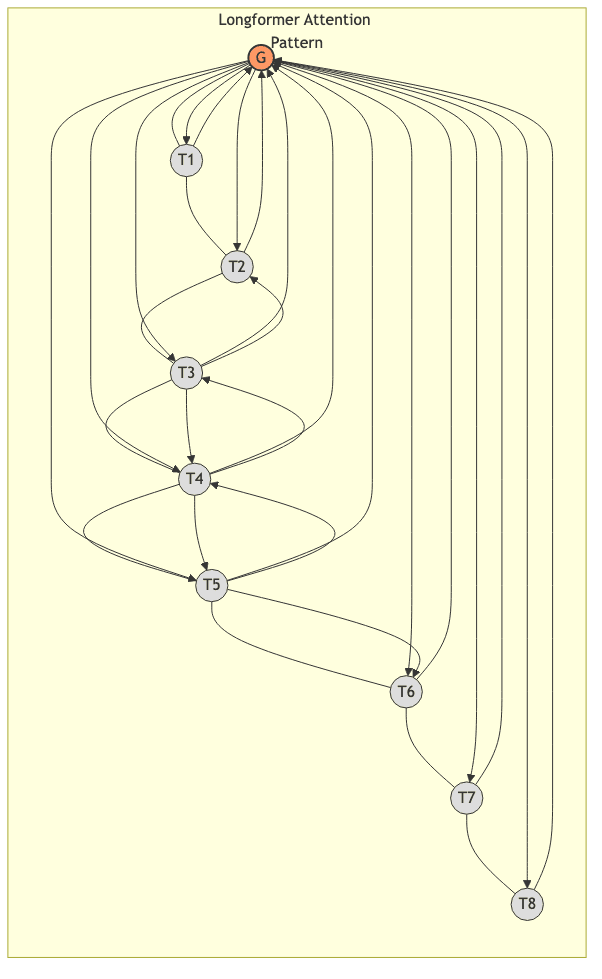

Longformer

• Pattern: A pragmatic blend: combines a sliding local attention window with designated “global tokens”.
• Global Tokens: Special tokens (e.g., the [CLS] token) act as information hubs, attending to all other tokens and being attended by all others.
• Complexity: Achieves linear O(n) complexity, if the number of global tokens remains small relative to n.
• Applications: Well-suited for document-level tasks – classification, QA, summarization where some global context is vital.
• Performance: Demonstrated scaling to sequences well beyond standard BERT limits (e.g., 16K+ tokens).

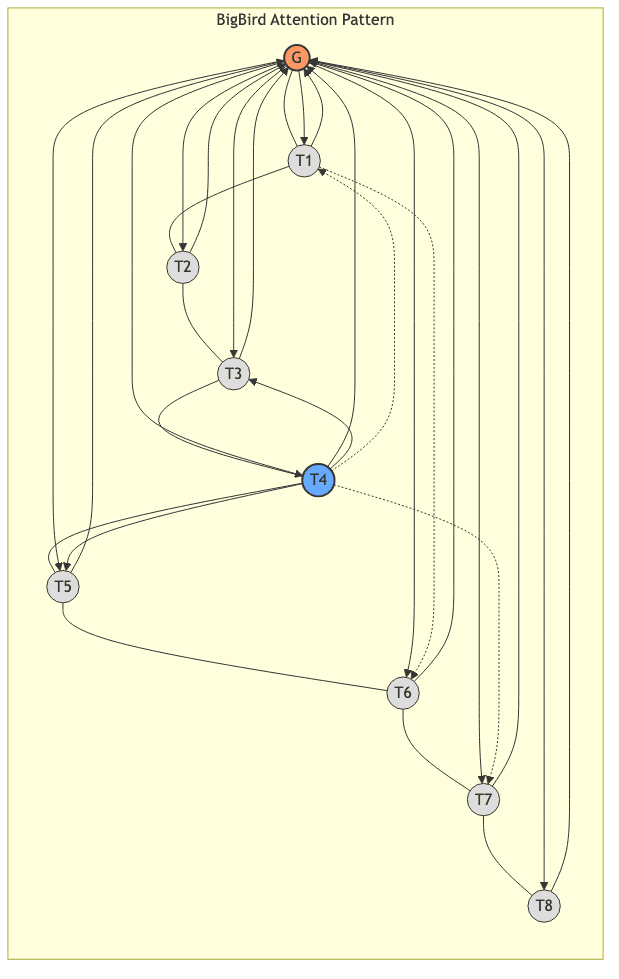

BigBird

• Pattern: Throws a mix of strategies at the wall:

  1. Window attention (local neighborhood)
  2. Global attention (select tokens are hubs)
  3. Random attention (each token connects to a few random others)
• Theory: This combination is proven to retain the expressive power of full attention (Turing complete), a theoretical guarantee perhaps less relevant than empirical results.
• Implementation: Often accelerated using block sparse matrix operations.
• Applications: Tackles genomics, long document understanding, and summarization.

Reformer

• Key Innovation: Employs Locality-Sensitive Hashing (LSH), a clever hashing trick to group similar tokens together based on their query/key vectors.
• Mechanism: Attention is restricted within these hash buckets, forcing tokens into ‘interest groups’.
• Complexity: Typically achieves near-linear O(n log n) scaling.
• Additional Optimizations: Famously introduced reversible layers, drastically reducing memory usage during training by recomputing activations instead of storing them.
• Trade-offs: The cost of hashing adds overhead, weighed against the savings from sparser attention.

Performer

• Approach: Mathematically elegant technique called Fast Attention Via positive Orthogonal Random features (FAVOR+).
• Mechanism: Approximates the full attention matrix using a low-rank decomposition based on random feature maps, cleverly avoiding the need to ever materialize the n x n matrix.
• Complexity: Achieves linear O(n) scaling in both time and memory.
• Advantage: Unlike many fixed or random sparse patterns, FAVOR+ provides an unbiased estimate of the full attention matrix (in expectation).
• Applications: Showcased on challenging tasks like protein sequence modeling.

5. Implementation Example: Local Attention in PyTorch

To make this concrete, here’s a simplified sketch of local attention. Disclaimer: This is for conceptual clarity, not optimized production code.

import torch
import torch.nn as nn
import torch.nn.functional as F

class LocalSelfAttention(nn.Module):
    def __init__(self, embed_dim, num_heads, window_size):
        super().__init__()
        self.embed_dim = embed_dim
        self.num_heads = num_heads
        # window_size is typically half the full window (w tokens before, w after)
        self.window_size = window_size
        self.head_dim = embed_dim // num_heads

        assert embed_dim % num_heads == 0, "embed_dim must be divisible by num_heads"

        # Linear projections for queries, keys, and values
        self.query = nn.Linear(embed_dim, embed_dim)
        self.key = nn.Linear(embed_dim, embed_dim)
        self.value = nn.Linear(embed_dim, embed_dim)
        self.out_proj = nn.Linear(embed_dim, embed_dim)

    def forward(self, x):
        # x shape: [batch_size, seq_len, embed_dim]
        bsz, seq_len, _ = x.size()

        # Project to queries, keys, values and reshape for multi-head attention
        # Shape: [batch_size, seq_len, num_heads, head_dim]
        q = self.query(x).view(bsz, seq_len, self.num_heads, self.head_dim)
        k = self.key(x).view(bsz, seq_len, self.num_heads, self.head_dim)
        v = self.value(x).view(bsz, seq_len, self.num_heads, self.head_dim)

        # Transpose for attention calculation: [batch_size, num_heads, seq_len, head_dim]
        q = q.transpose(1, 2)
        k = k.transpose(1, 2)
        v = v.transpose(1, 2)

        # This is the inefficient part - iterating token by token
        # Production code uses masking or specialized kernels
        attended_values = []
        for i in range(seq_len):
            # Define window boundaries
            start = max(0, i - self.window_size)
            end = min(seq_len, i + self.window_size + 1)

            # Select query for current position i
            q_i = q[:, :, i:i+1, :]  # shape: [B, H, 1, D_head]

            # Select keys and values within the window [start, end)
            k_window = k[:, :, start:end, :]  # shape: [B, H, window_len, D_head]
            v_window = v[:, :, start:end, :]  # shape: [B, H, window_len, D_head]

            # Calculate attention scores within the window
            # (B, H, 1, D_head) @ (B, H, D_head, window_len) -> (B, H, 1, window_len)
            attn_scores = torch.matmul(q_i, k_window.transpose(-1, -2))

            # Scale attention scores
            attn_scores = attn_scores / (self.head_dim ** 0.5)

            # Apply softmax to get attention weights
            attn_weights = F.softmax(attn_scores, dim=-1) # shape: [B, H, 1, window_len]

            # Apply attention weights to values
            # (B, H, 1, window_len) @ (B, H, window_len, D_head) -> (B, H, 1, D_head]
            context = torch.matmul(attn_weights, v_window)
            attended_values.append(context)

        # Concatenate results from all positions
        # List of [B, H, 1, D_head] -> [B, H, seq_len, D_head]
        output = torch.cat(attended_values, dim=2)

        # Transpose back to [B, seq_len, H, D_head] and reshape
        output = output.transpose(1, 2).contiguous().view(bsz, seq_len, self.embed_dim)

        # Final linear projection
        output = self.out_proj(output)

        return output

Key Implementation Notes:

1. Efficiency Reality: The Python loop above is catastrophically slow. Real implementations don’t iterate token-by-token. They achieve parallelism using:
   • Carefully constructed attention masks applied to the full (but never fully computed) attention matrix.
   • Techniques like diagonal banding or block-sparse matrix operations in libraries like Triton or deepspeed-sparse.
   • Highly optimized custom CUDA kernels (like those in FlashAttention) that exploit GPU memory hierarchy.
2. Memory Savings: The core win is avoiding the O(n²) matrix. By only computing and storing scores within local windows (or other sparse patterns), memory scales much more gently, often approaching O(n) or O(n log n).
3. Vectorization / Parallelism: Production code processes all tokens simultaneously. The trick is efficiently indexing and gathering the relevant keys/values for each query token based on the chosen sparse pattern, often requiring clever memory access patterns.
4. Causal Masking: For autoregressive tasks (like language generation), the attention pattern must be further restricted so a token cannot attend to future tokens. This usually involves masking the upper triangle of the effective attention matrix within the window.

6. Real-World Applications and Performance

The payoff for this added complexity isn’t theoretical. Sparse attention has unlocked capabilities:

Document-Level Natural Language Processing

• Long Document Summarization: Compressing research papers or book chapters into abstracts.
• Document-Level Translation: Maintaining coherence and context across paragraphs.
• Legal Document Analysis: Untangling the long threads of contracts and case law.

Genomics and Biological Sequence Analysis

• Protein Structure Prediction: Capturing interactions between distant amino acids in large protein chains.
• Genomic Analysis: Deciphering patterns in DNA sequences spanning millions of base pairs.
• Drug Discovery: Modeling complex molecular interactions at scale.

High-Resolution Computer Vision

• Medical Imaging: Analyzing massive medical scans (gigapixel pathology slides, high-res MRI).
• Satellite Imagery: Processing vast geographic areas from satellite data.
• Video Understanding: Modeling temporal dependencies across longer video clips.

Performance Benchmarks (Illustrative)

Grain of salt required: These are rough estimates. Actual performance depends heavily on implementation details, hardware, sequence length, and specific task.

7. Latest Trends and Advances

The quest for efficient attention is far from over. The arms race continues on multiple fronts:

Kernel-Based Methods & Alternatives

• FlashAttention / FlashAttention-2: Not sparse, but uses clever I/O-aware algorithms (tiling, recomputation) to make exact attention much faster and memory-efficient on GPUs, often beating sparse methods in practice up to moderate lengths.
• Linear Attention Variants: Continued exploration of kernel methods (like Performer) or simplified attention mechanisms that replace softmax with linear/polynomial functions, enabling O(n) scaling.

Hybrid Approaches

• Mixture of Experts (MoE) + Sparsity: Combining sparse attention (reducing computation per token) with sparse activation (only activating some experts/parameters per token) for potentially massive models.
• Adaptive Sparsity: Models that dynamically adjust the sparsity pattern based on the input sequence or even layer depth.
• Hierarchical Attention: Applying different attention scopes (local, global, dilated) at different layers of the network.

Memory-Augmented Approaches

• Memorizing Transformers: Using external key-value memory stores to effectively extend context length beyond the standard input window.
• Recurrence Hybrids: Reintroducing recurrent connections (like RNNs or state-space models like Mamba) alongside or instead of attention to handle state over very long sequences.
• Retrieval Augmentation: Using efficient retrieval systems to fetch relevant context from vast external corpora on demand, rather than fitting it all into the attention window.

Hardware Co-Design

• Specialized Kernels: Continued optimization of low-level code (CUDA, Triton) specifically for sparse or efficient attention patterns.
• Hardware Accelerators: Designing silicon (TPUs, NPUs, custom ASICs) with primitives that accelerate common sparse matrix operations or specific attention algorithms.
• Quantization & Pruning: Combining reduced precision arithmetic and parameter pruning with attention sparsity for further efficiency gains.

8. Conclusion and Future Outlook

Sparse attention mechanisms, in their various guises, have fundamentally altered the scaling limits of Transformer architectures. They represent a crucial set of tools that allow these powerful models to break free from the O(n²) prison and engage with the lengthy, complex sequences that characterize many real-world problems.

Looking ahead, the trajectory likely involves:

1. Deeper Grasp of Information Flow: Understanding precisely what information is lost with different sparsity patterns and how to mitigate it.
2. Task-Specific & Adaptive Patterns: Moving beyond generic sparsity to patterns tailored for specific data modalities (text, code, images, audio, biology) or learned on the fly.
3. Hardware/Software Co-Design: Recognizing that peak efficiency requires optimizing algorithms and the underlying hardware in tandem.
4. Synergy with Other Techniques: Blending sparse attention with quantization, pruning, MoE, retrieval, and potentially recurrence for compounded efficiency.
5. Beyond Attention?: Exploring whether fundamentally different sequence modeling architectures (like state-space models) might eventually supersede or complement attention-based approaches for extreme sequence lengths.

As AI continues to ingest and generate ever-larger streams of data, sparse and efficient attention methods are less a niche optimization and more a fundamental necessity. They are critical infrastructure for pushing the boundaries of what AI can comprehend and create from the ever-expanding ocean of sequential information.

This article was last updated in 2023. For the latest developments in sparse attention research, see our more recent publications.
